August 20, 2009
One mode is for setting off in particularly dynamic style and for driving at low speeds, the second is for driving at a higher speeds under optimum conditions.

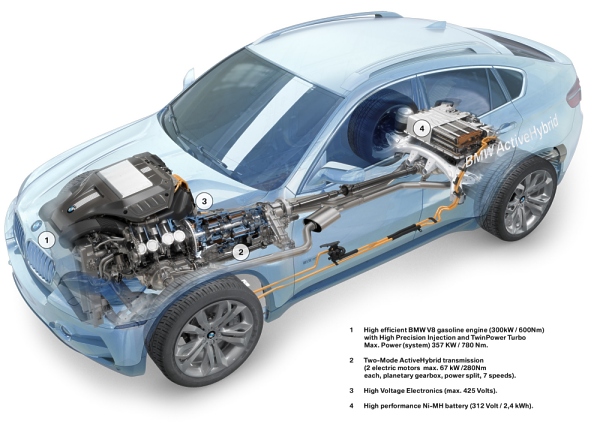

This ensures all the benefits of BMW ActiveHybrid technology, with maximum efficiency under all loads and at all speeds. At the same time the seven-speed automatic transmission provided by the electric motors together with three planetary gearsets and four multiple-plate clutches ensures all the supreme driving behaviour, smoothness and performance so typical of BMW.
When applying the brakes or taking back the gas pedal kinetic energy is converted into electrical energy and stored in the high-performance battery. To provide this benefit either one or both electric motors act as a generator, depending on driving conditions. The recuperation efficiency and output achieved by the system is 25 times greater than with Brake Energy Regeneration featured so far in BMW’s production models.
Electrical energy is stored in an NiMH high-performance battery with a capacity of 2.4 kWh. The temperature of the high-voltage battery is controlled as required and with maximum efficiency by liquid cooling interacting with the air conditioning and an external heat exchanger.
The central electronic control unit ensures appropriate interaction of the combustion engine and electric drive crucial to the outstanding efficiency and unique qualities of the BMW ActiveHybrid X6. It converts high-voltage direct current from the high-performance battery into three-phase alternating current for the two electric motors in the hybrid transmission. It also coordinates all functions of the hybrid system including the distribution of torque and power between the combustion engine and the electric motors as well as the selection of gears.
Over and above the electric motors, the high-performance battery also supplies electrical energy to the power-consuming items linked to the 12-volt on-board network. The BMW ActiveHybrid X6 is equipped with electromechanical power steering and an electrical climate compressor both remaining fully functional also when the combustion engine is switched off and enhancing the overall efficiency of the vehicle to an even higher standard through their on-demand consumption and uptake of energy.
While braking the generator builds up stopping forces in the electric
motors acting efficiently on all four wheels and precisely coordinated
with the hydraulic brake effect in accordance with the driver’s stopping
and deceleration requirements. This provides not only optimum stopping
power, but also the brake feeling so typical of BMW under all driving
conditions including the all-electric mode. A further point is that like
the BMW X6, the BMW ActiveHybrid X6 comes with Dynamic Stability control
incorporating an enhanced
In its driving behaviour and motoring comfort, the BMW ActiveHybrid X6 offers all the standards provided by BMW’s latest X models, without the slightest difference between the electrical and the combustion drive mode. Intelligent xDrive all-wheel-drive technology with permanent, variable power distribution front-to-rear enhances the unique driving dynamics of the vehicle to an even higher standard.
The current operating mode and function of the drive system is clearly presented by appropriate displays in the instrument cluster and in the Control Display itself. The charge level of the high-performance battery at the disposal of the driver and the current operating mode are shown by appropriate gauges beneath the rev counter. Being informed of the power uptake when driving in the electric mode, the driver may if he wish maintain that mode longer in the interest of extra efficiency. And if he wishes the driver may also call up information on the current flow of energy in the Control Display.
The particularly prominent Powerdome on the engine lid gives the BMW ActiveHybrid X6 a very distinctive look versus the “regular” BMW X6 as a significant visual highlight. “ActiveHybrid” model designations on the tailgate trim bar and on the front doors, the designation “BMW ActiveHybrid” on the door entry covers on either side, 19-inch light-alloy wheels (or, as an option, 20-inch light-alloy wheels in aerodynamically optimised Streamline design), as well as exterior paintwork in exclusive Bluewater metallic for the first time on a BMW X6 serve furthermore to highlight the particular character of this unique car.
The BMW ActiveHybrid X6 combines innovative drive technology with the unique concept of a Sports Activity Coupé. The very progressive and exclusive character of this outstanding vehicle is further underlined by a particularly wide range of standard features as well as attractive options. The BMW ActiveHybrid X6 comes as standard with features such as comfort seats, automatic air conditioning, cruise control, the BMW Professional navigation system and Park Distance Control.
A further important feature is the electrical opening and closing function on the tailgate. Options include an extended range of nappa leather upholstery in an exclusive Ivory White/Black colour combination complete with double blue seams, a glass sliding/vent roof, a trailer towbar, as well as the complete range of BMW ConnectedDrive including innovative driver assistance systems.
The safety features offered by the BMW ActiveHybrid X6 include frontal and side airbags, head airbags at the side, crash-activated headrests at the front, runflat tyres as well as a Tyre Defect Indicator enabling the driver to monitor the pressure individually in each tyre. BMW Adaptive Headlights complete with a Bending Light function supplement the bi-xenon headlights with their daytime driving lights featured as standard.
(August 13, 09)
